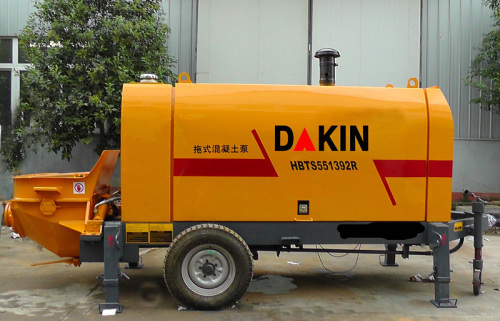

concrete pump small concrete pump trailer concrete pumps
Payment Terms: |
T/T,L/C |
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Model No.:
HBTS80-16-145R
Production Capacity:
100 sets per week
Delivery Date:
10 days
Means of Transport:
Ocean
Packing:
Normal
Brand Name:
DAKIN
Model HBTS80-16-145R
Length(L) 7200mm
Width(W) 2100mm
Height(H) 2500mm
Hopper Capacity 0.8m³
Feeding Height 1380mm
Weight 6500kg
Theoretical de
Model | HBTS60-13-130R | HBTS80-16-145R | HBTS80-16-176R | HBTS80-18-181R |
Length(L) | 7200mm | 7200mm | 7200mm | 7200mm |
Width(W) | 2100mm | 2100mm | 2100mm | 2100mm |
Height(H) | 2500mm | 2500mm | 2500mm | 2500mm |
Hopper Capacity | 0.8m³ | 0.8m³ | 0.8m³ | 0.8m³ |
Feeding Height | 1380mm | 1380mm | 1380mm | 1380mm |
Weight | 6200kg | 6500kg | 6780kg | 7010kg |
Theoreticaldelivery pressure | 13Mpa | 16Mpa | 16Mpa | 18Mpa |
Theoreticalconcrete output | 60m³/h | 80m³/h | 80m³/h | 80m³/h |
HydraulicSystem | Open | Open | Open | Open |
Max. Vertical Reach | 100m | 130m | 150m | 150m |
Power | 130kw | 145kw | 176kw | 181kw |
Rotation speed | 2200r/min | 2200r/min | 2200r/min | 2200r/min |
Distribution valve | S Pipe Valve | S Pipe Valve | S Pipe Valve | S Pipe Valve |
Hydraulic Cylinder Diameter | φ125mm | φ140mm | φ90mm | φ150mm |
Concrete Cylinder Diameter | φ200mm | φ200mm | φ200mm | φ200mm |
High/Low Pressure Switch | Available | Available | Available | Available |
Oil Tank Volume | 230L | 230L | 230L | 230L |
Hydraulic Oil Tank Volume | 580L | 580L | 580L | 580L |
DieselEngine Brand | Deutz Weichai | Deutz Weichai | As per customer | FAW Deutz |
HydraulicPump | Bosch Rexroth/Kawasaki | Bosch Rexroth/Kawasaki | Bosch Rexroth/Kawasaki | Bosch Rexroth/Kawasaki |
Hydraulic Elements | Imported | Imported | Imported | Imported |
